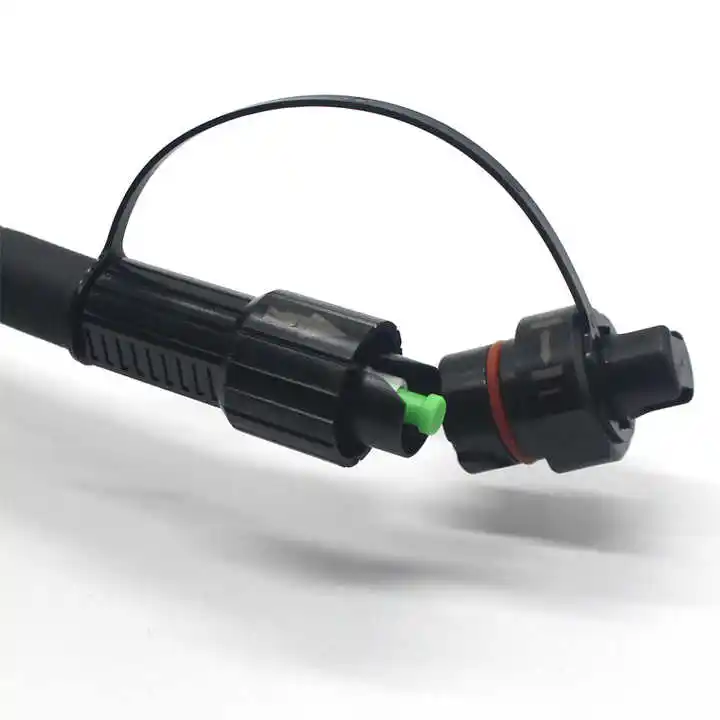

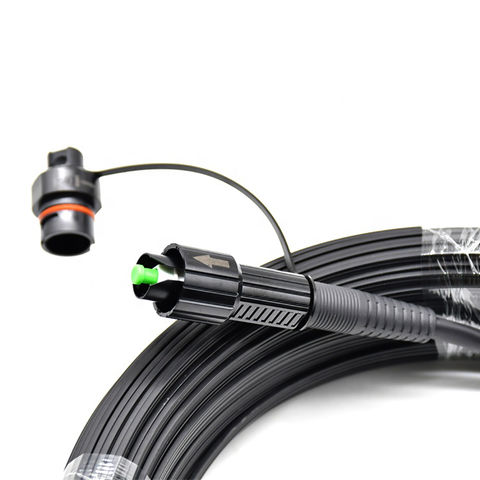

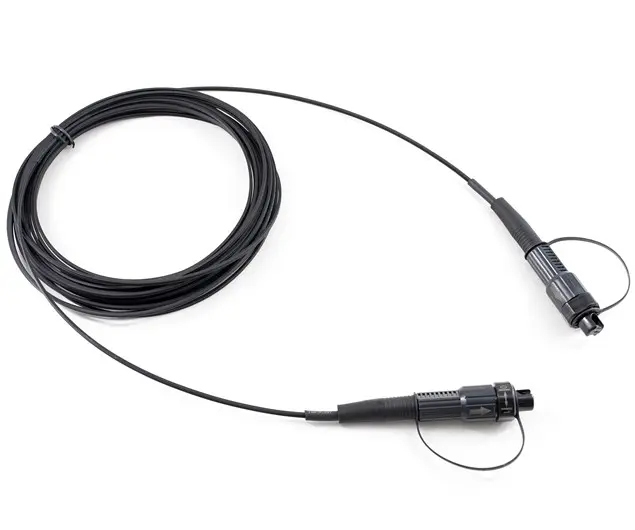

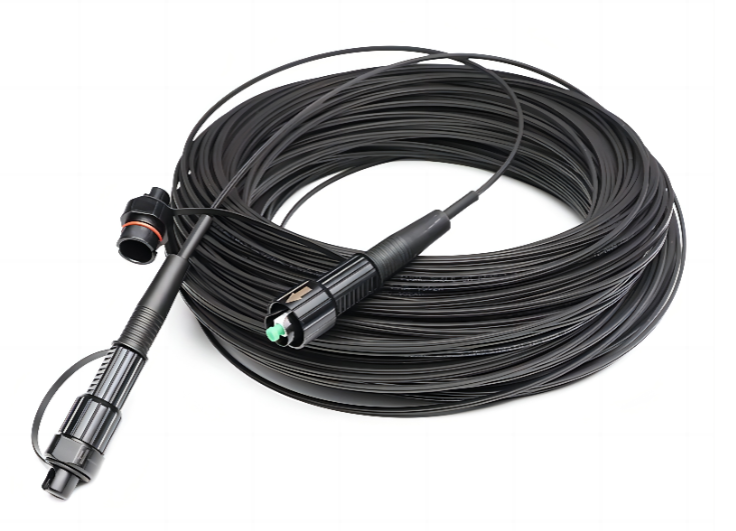

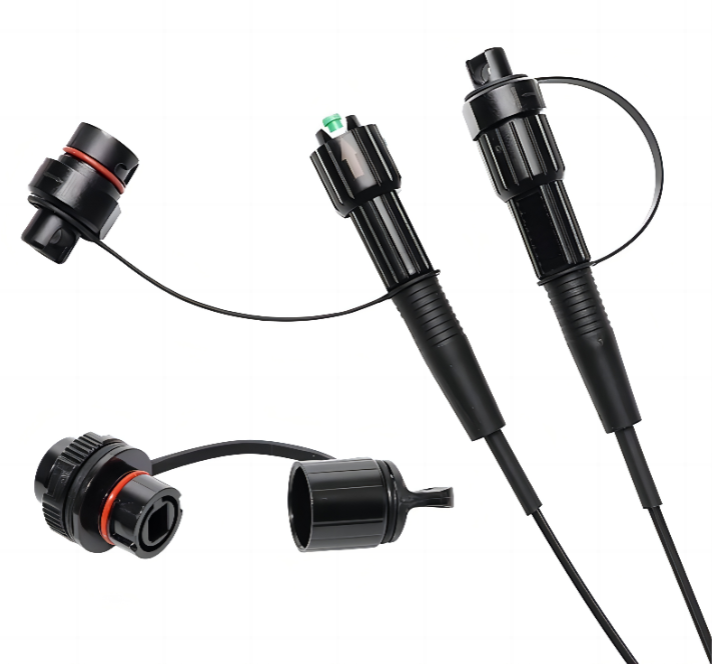

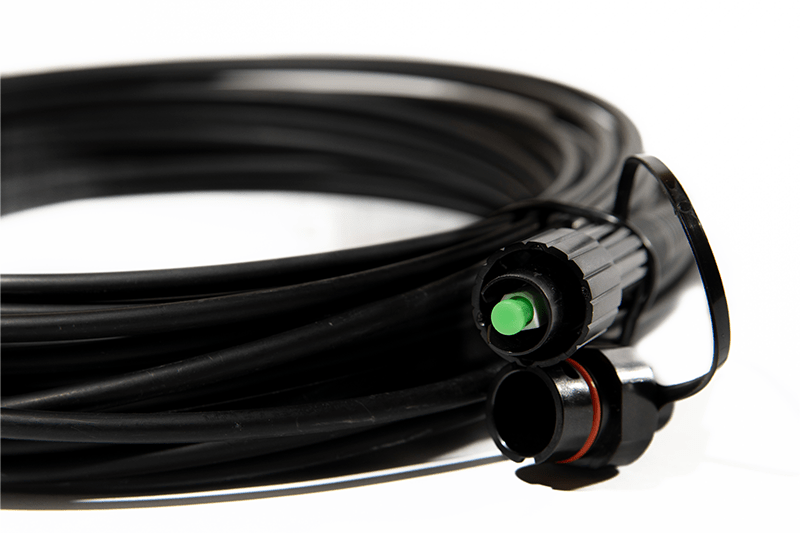

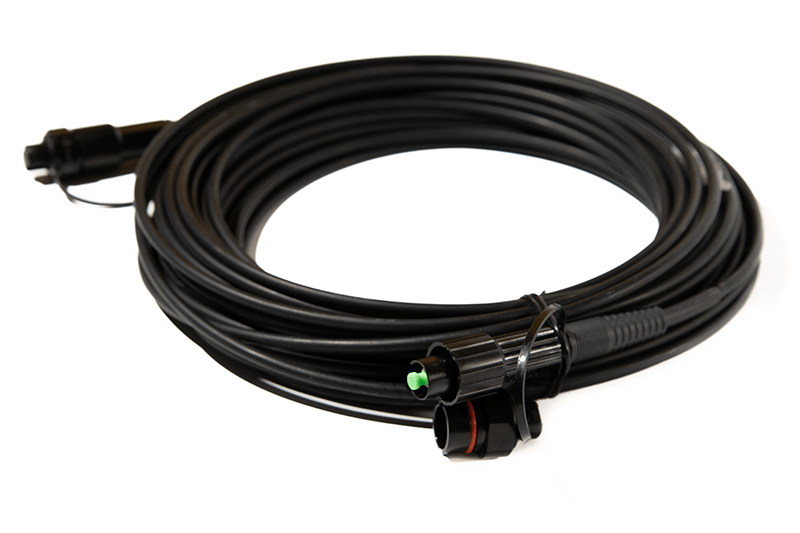

The preconnected drop cable pigtail is a factory-terminated fiber drop solution designed for fast and easy deployment in FTTH networks. It combines drop cable with a pre-installed connector (SC/APC or SC/UPC), eliminating the need for on-site splicing.
Application:
FTTX/FTTH Systems
Ethernet Applications
CATV Links
Optical Signal Distribution
Passive Optical Networks (PON)
Backbone, Horizontal and riser applications
Preterminated Drop Terminal Boxes
Outdoor Areas; Harsh Environment
Features:
Low insertion loss, high return loss.
Good in repeatability and exchangeability.
100% Insertion, Return Loss, End Face and.
Interference inspection.
Excellent mechanical endurance.
Complying with Telcordia GR-326-Core.
Ensures high performance and reliability in the management of optical cabling.
Fast and easy installation and reconfiguration.
Simple handling, no need for special tool.
IP68 Waterproof.
Optical fiber type and properties
Item | Unit | Specification | |
G. 657A | |||
Mode field diameter | 1310nm | μm | 8.6 ± 0.4 |
Cladding diameter | μm | 125.0 ± 0.7 | |
Cladding non-circularity | % | ≤1.0 | |
Core concentricity error | μm | ≤0.5 | |
Coating diameter | μm | 245 ± 5 | |
Coating/cladding concentricity error | μm | ≤12 | |
Cable cut-off wavelength | nm | ≤ 1260 | |
Attenuation Coefficient | 1310nm | dB/km | ≤0.35 |
1550nm | dB/km | ≤0.21 | |
Macro-bend loss (1 turn,7.5mm radius) | 1550nm | dB/km | ≤0.5 |
1625nm | dB/km | ≤1.0 | |
Proof stress level | kpsi | ≥100 |
Technical Specification:
Constructions | Unit | Descriptions | Notes |
Fiber Count | Simplex | ||
Wavelength | nm | 1310/1550 | |
Insertion Loss | dB | ≤0.30 | |
Return Loss | dB | ≥60 (APC) | |
Cable Jacket Color | Black | ||
Cable Outer Diameter | mm | (5.2±0.2)*(2.0*3.0±0.1) | |
Fiber Mode | Single mode: G657A1 | ||
Cable Jacket Material | LSZH | ||
Cable weight | kg/km | 17(approx for 100m) | |
Printing contents | Customizable | ||
Length | m | 50 、100 、150 or Customizable (Tolerance: ±0.5m) | |
Connector type | SC/APC SC/UPC IP68... as request | ||
Waterproof Grade | IP68 | ||
Operating Temperature | ℃ | -20°C ~ +70℃ | |
Storage Temperature | ℃ | -40℃ ~ +70℃ |
