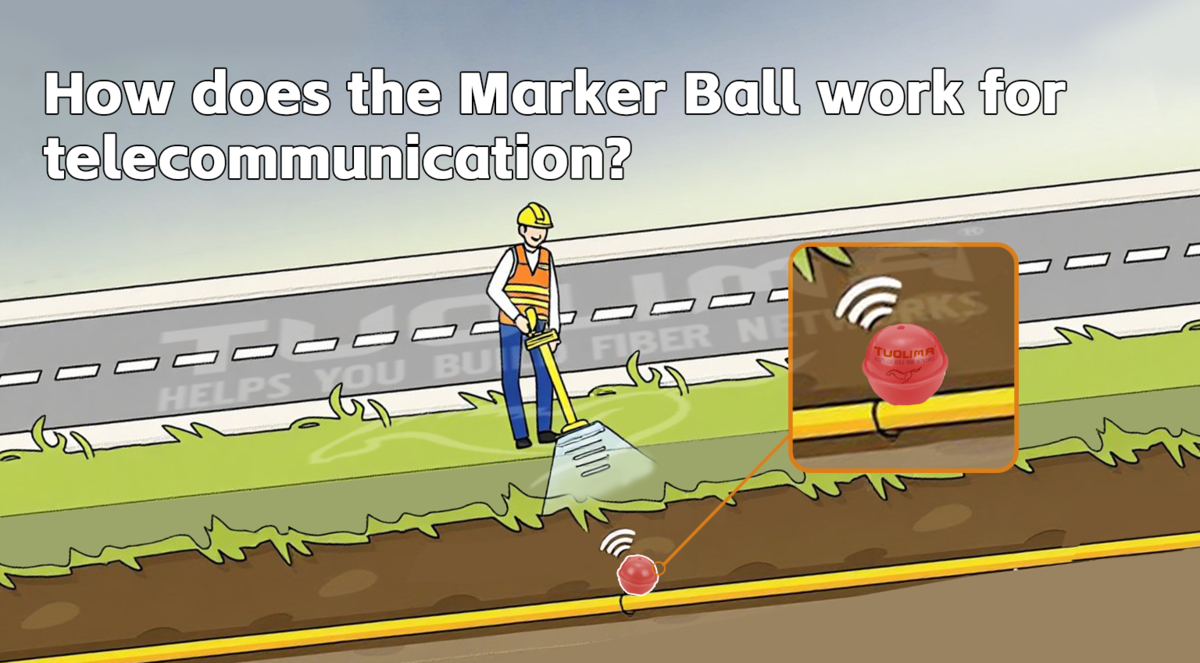

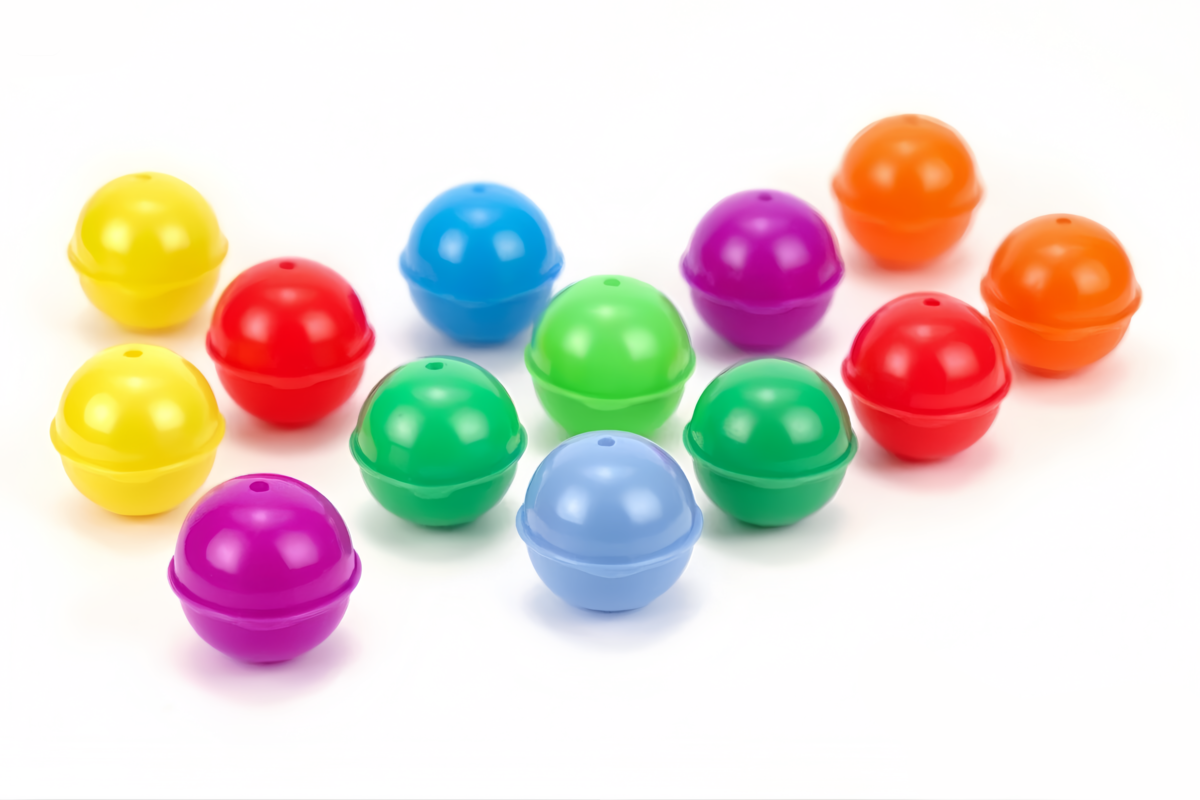

The Markerball MB22 orange is used to mark relevant positions in the ground.
If necessary, the passive electronic oscillating circuit can be located with pinpoint accuracy by means of a locator. Typical positions for the ball marker are, e.g, telecommunication cables, pipe bracings, branches or joints.
Application:
Long-distance telecom backbone routes
FTTH (Fiber to the Home) main lines in urban environments
Data center interconnection networks
Railway and highway cable installations
Communication cables for pipelines, oil & gas, or smart grid infrastructure
Features:
High Detectability: Passive RFID technology enables precise, long-term underground signal marking.
Durable Design: Molded from HDPE for excellent mechanical strength, chemical resistance, and waterproofing.
Accurate Location: Can be detected with compatible RF locators with ±15 cm accuracy.
Easy Installation: No power supply, no activation required—ready to use upon burial.
Frequency Options: Custom frequencies available to match regional or client standards.
ORDERING INFOMATION:
Item | Specification |
Model | TLM-MB110-TC |
Outer Diameter | Ø110 mm |
Weight | Ca. 0,4kg |
Shell Material | High-strength HDPE (UV-resistant, corrosion and impact resistant) |
Operating Frequency | 101,4 kHz ± 2,5 kHz |
Identification Type | orange (customizable) |
Maximum Detection Depth | Up to 1.5 meters (depending on field conditions & detector) |
Service Life | ≥ 50 years (passive, no power required) |
Ingress Protection Rating | IP68 |
Operating Temperature | -15°C to +60°C |
Storage Temperature | -40°C to +75°C |
Installation Method | Buried directly above or near the fiber optic cable |
Packaging | 100 pcs/carton |
